A clever combination – Our linear gantry HSL

With our new line gantry HSL, we are presenting a flexible unit for positioning in the X- and Z-direction.

Two axes combined in one system

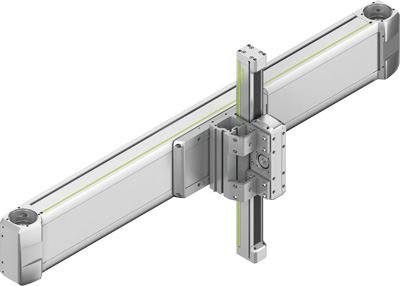

Consisting of a linear table HT-B as the X-axis and a cantilever axis HC as the Z-axis, the line gantry is particularly well-suited to dynamic positioning in two-dimensional handling applications.

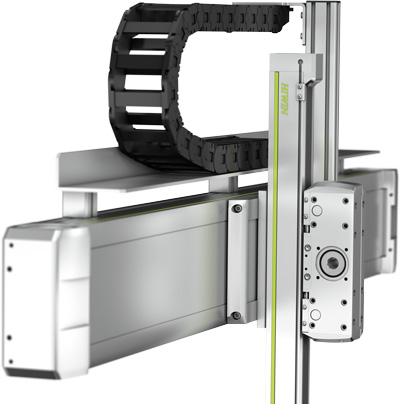

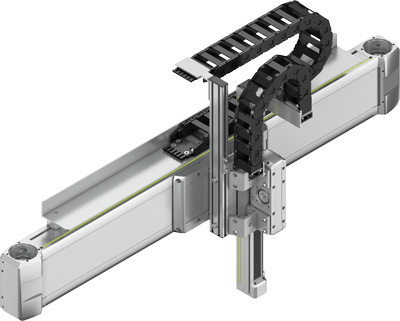

The installed linear axes with toothed belt drive can be individually adapted to the respective application requirements by means of a freely selectable stroke in millimetre intervals and, on request, with an energy chain and drive adaptation.

Another advantage: The ready-to-install complete system can be conveniently configured and ordered directly using our online portal.

One unit, two positioning directions – our new line gantry HSL impresses all along the line. Configure your individualised linear gantry now at www.hiwin.en.
